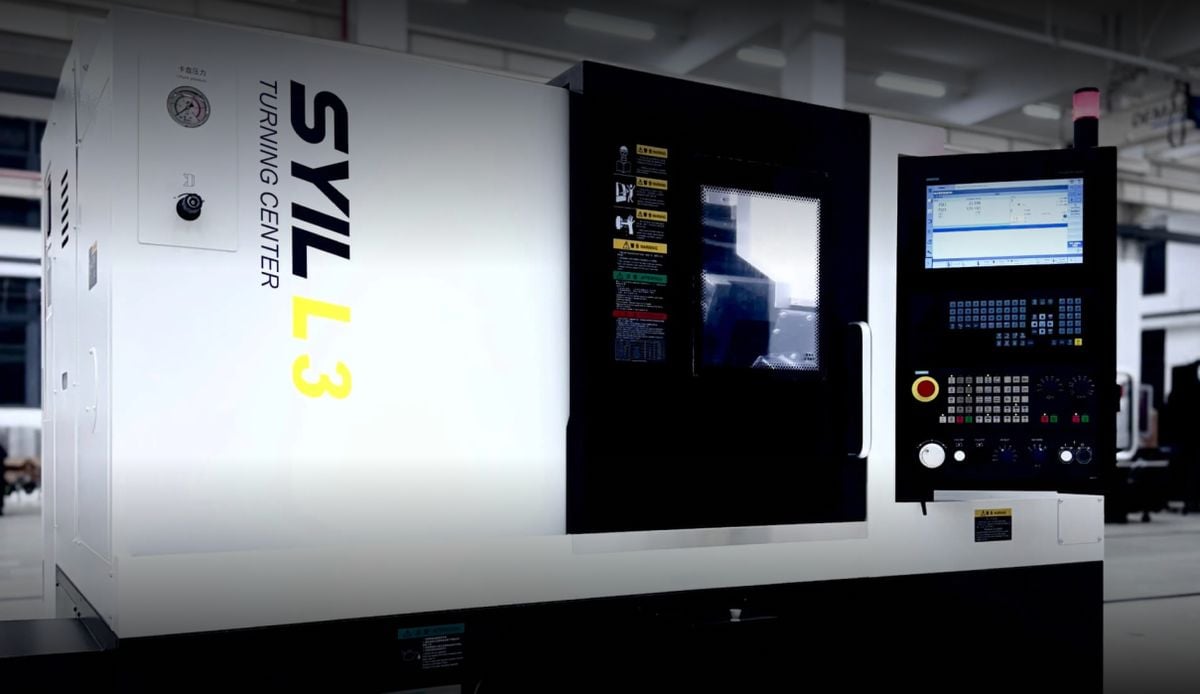

CNC tokarilica SYIL L3

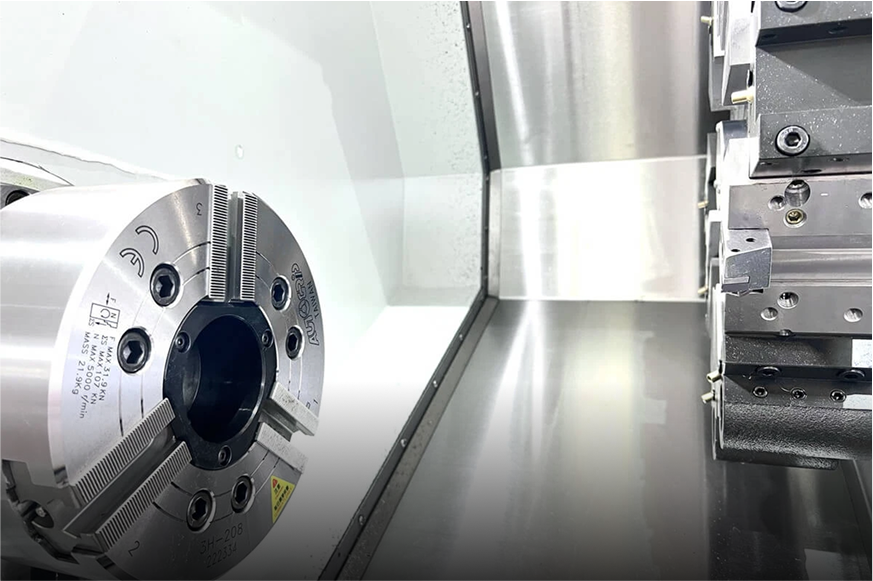

Hidraulična stezna glava visokih performansi

od 8" Maksimalni promjer ljuljanja od ø500MM Promjer provrta ø63MM Opcionalna servo okretna glava SAUTER Brzina alata na motorni pogon od 5000 rpm Specifikacija alata BMT55 Opcionalna os Y Opcionalno podvreteno

Zatraži ponudu

Processing Capacity

Chuck size:

8"

Max. swing diameter over bed:

ø21.7" (ø550mm)

Max. swing diameter over carriage:

ø11.4" (ø290mm)(with Y axis: 7.9" or 200mm)

Max. workpiece length:

19.7" (500mm)(with Y axis: 20.9" or 530mm, with Counter Spindle: 17.7" or 450mm)

Max. workpiece diameter:

ø15" (ø380mm)

Spindle

Max. speed:

4000 rpm

Spindle nose:

A2-6

Spindle bore diameter:

ø2.5" (ø63mm)

Through spindle bore diameter:

ø2" (ø52mm)

Spindle power:

11/15kW

Min. C-axis indexing:

0.001°

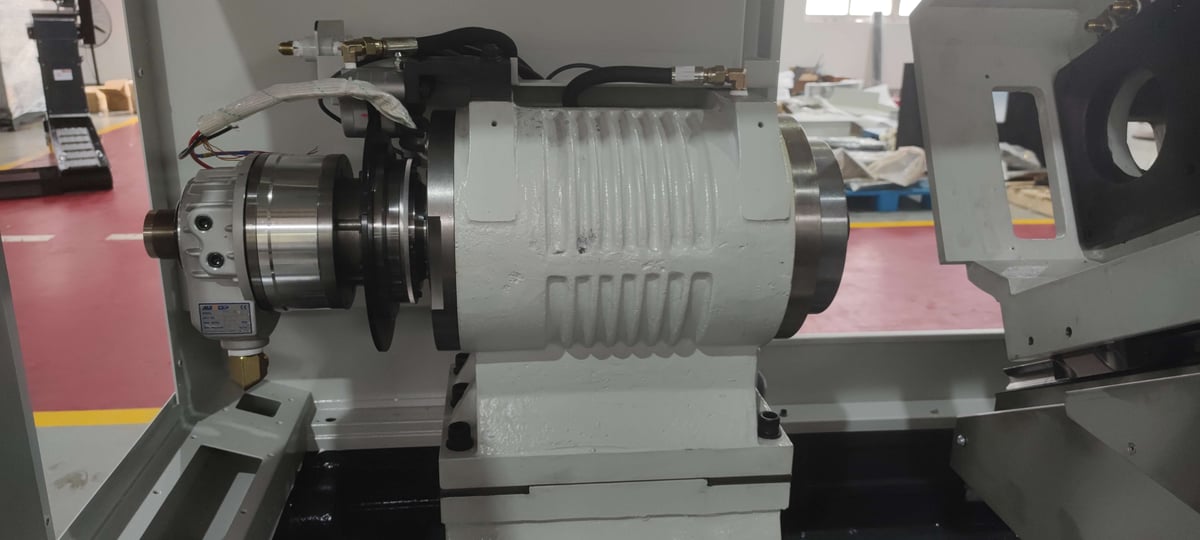

Counter Spindle

Chuck size:

6"

Rate speed / Max speed:

1750/6000rpm

Spindle nose:

A2-5

Spindle bore diameter:

ø2.2" (ø56mm)

Through spindle bore diameter:

ø1.8" (ø45mm)

Spindle power:

11kW

Travels:

530m

Rapid traverse:

1181.1ipm (30m/min)

Tool Holder

Type:

Power Turret

Tools:

12

Min. Tool to Tool:

0.2s

Max. Tool to Tool:

0.5s

Max tool shank size:

0.98x0.98" (25x25mm)

Max tool shank diameter:

ø1.6" (ø40mm)

Max. Live Tooling Speed:

5000rpm

Live Tooling Model:

BMT55

Travels

X Rapid traverse:

1181.1ipm (30m/min)

Z Rapid traverse:

1181.1ipm (30m/min)

Y Rapid traverse:

590.6ipm (15m/min)

X Travels:

190+10mm

Z Travels:

550mm (with Y axis: 490+-50mm)

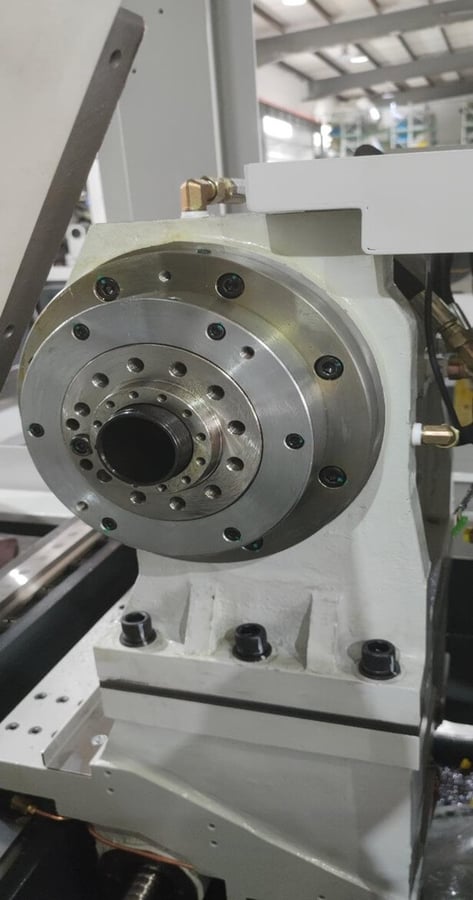

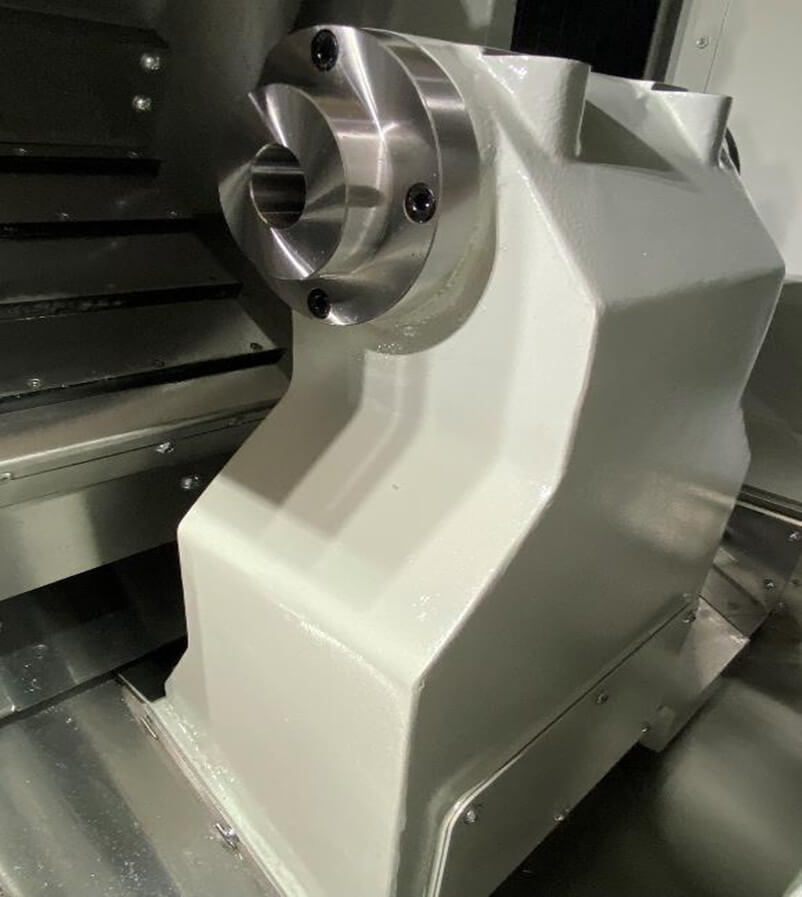

Tail Stock

Travels from Tail Stock to Chunk:

18.3" (465mm) (with Y axis: 19.7" or 500mm)

Tail Stock Rapid Traverse:

1181.1ipm (30m/min)

Sleeve taper:

MT4

Accuracy

Finish turning cylindrical accuracy:

IT6

Finish turning parts surface:

Ra0.4-1.6

Finished turning parts roundness:

≤0.003mm

Position accuracy (X):

0.005mm

Position accuracy (Ｚ):

0.008mm

Repeat accuracy (Ｘ):

0.002mm

Repeat accuracy (Ｚ):

0.004mm

Dimensions and Weight

Dimensions (LxWxH):

98.4"x67.7"x68.5" (250x172x174cm)(with Y axis: 268x175x185cm, with Counter Spindle: 268x175x185cm)

Net Weight:

8818lb (4000kg)

pecifikacije tokarskih paketa SYIL L3

Idealan izbor za izradu prototipa ili izradu malih metalnih dijelova.

Zatraži ponudu

SYIL x Siemens

SYIL L3 je serijsko opremljen s Siemensovim krmilnim sistemom SINUMERIK 828D. Krmiljenje SINUMERIK 828D s svojo edinstveno zmogljivostjo CNC postavlja standarde produktivnosti pri rezkanju na strojih SYIL. Z novimi pogoni SINAMICS in motorji za krmiljenje gibanja SIMOTICS je SINUMERIK 828D zdaj še bolj produktiven. Robustna arhitektura strojne opreme in inteligentni krmilni algoritmi skupaj z visokokakovostno tehnologijo pogonov in motorjev zagotavljajo največjo dinamiko in natančnost med strojno obdelavo.

Zatraži ponudu

oboljšajte preciznu obradu pomoću SYIL CNC tokarilica

Ima kupolu, značajno smanjujući vrijeme promjene alata i poboljšavajući krutost čipa.

Tokarilica visoke produktivnosti

SYIL L3 tokarski centar s aktivnim alatom za visoke performanse CNC obrada malih i srednjih izradaka.



Schneeberger

Opcionalni SCHNEEBERGER visokoprecizni mineralni lijevanje

THK

Visokoprecizni kuglični vijci i linearne vodilice

Opcionalna SAUTER servo kupola

Brzina vretena električnog alata od 5000 okretaja u minuti

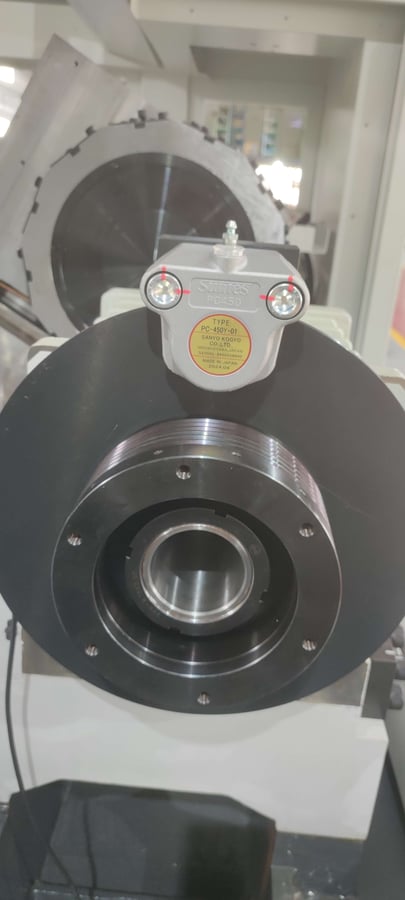

Brza servo jedinica vretena

Maksimalna brzina vretena 4500 o / min

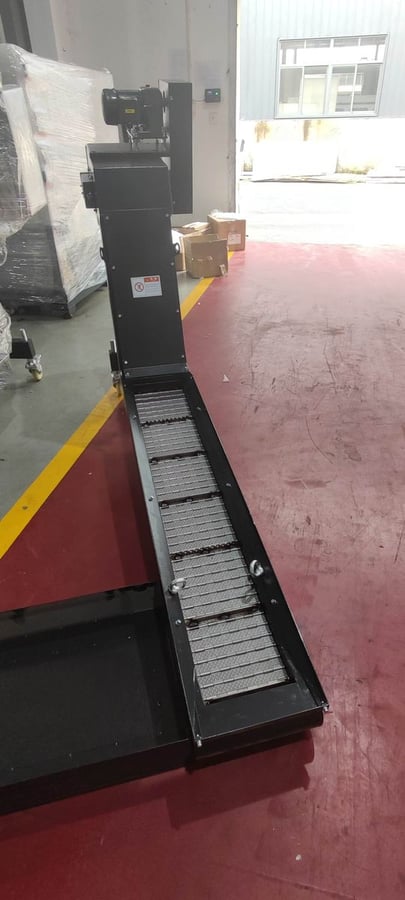

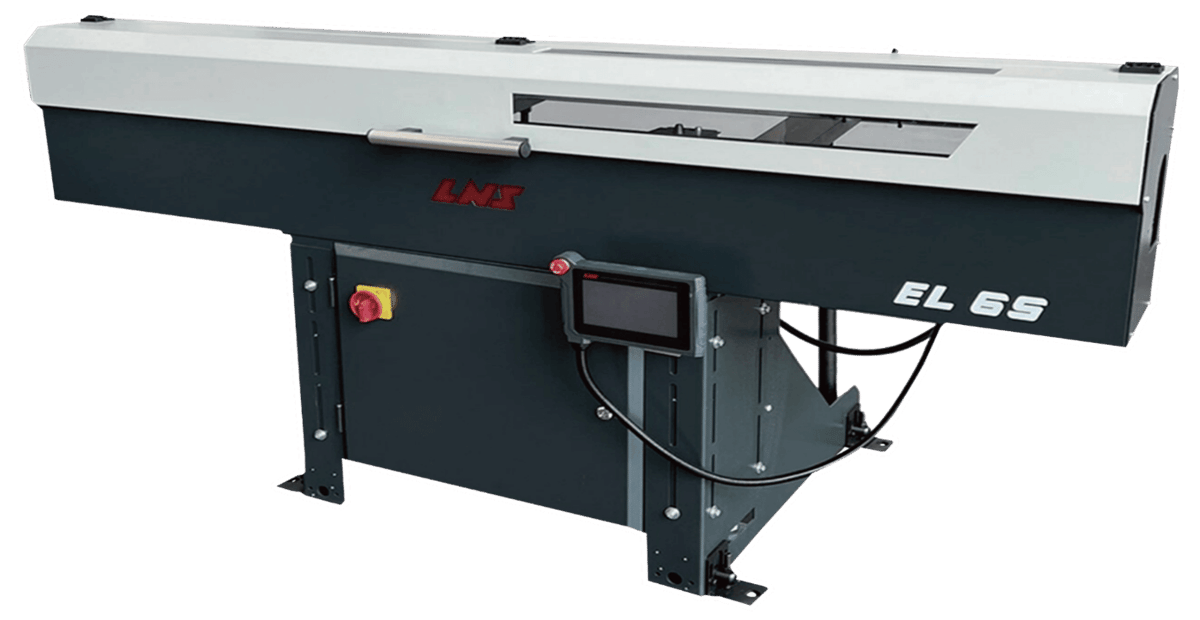

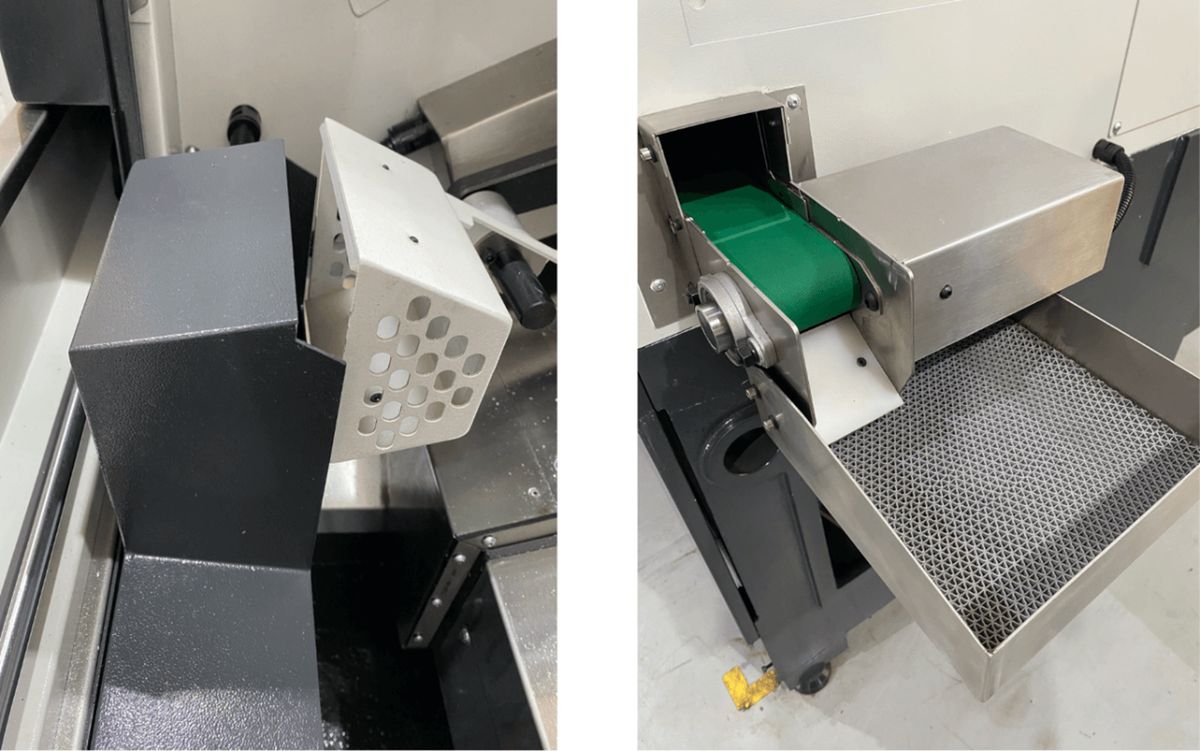

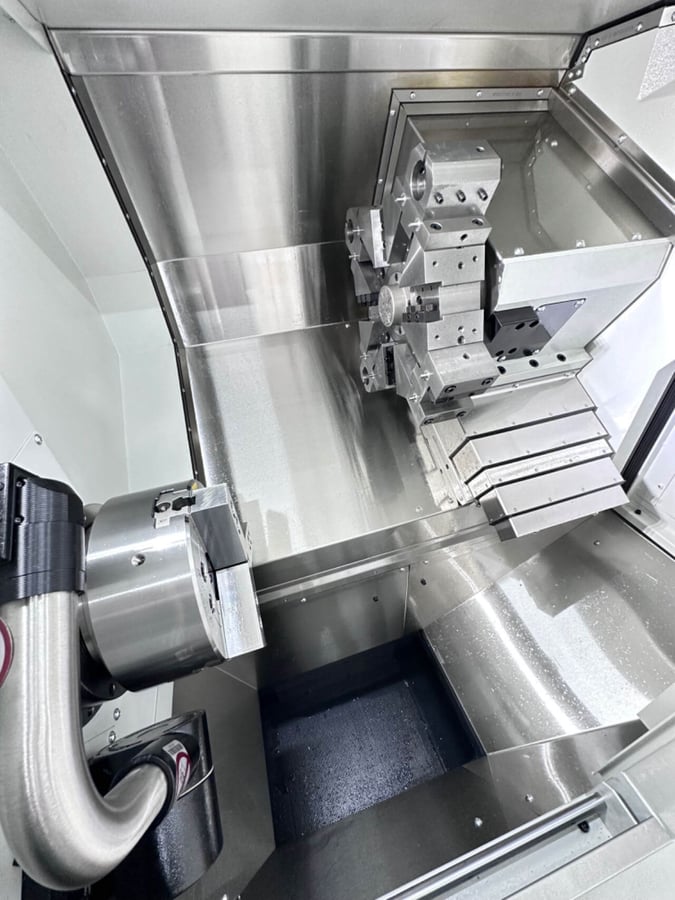

Opcije za SYIL L3

Otkrijte svestranu SYIL L3 mini glodalicu, savršenu za hobiste i profesionalce. Kompaktan dizajn, visoka preciznost i pristupačna cijena.

Preuzmi cijene

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Technical Specifications

logo
L2
L3
L4
Processing Capacity
Chuck size
8 inch
8 inches
10 inches
Max. swing diameter over bed
ø510 mm
ø550 mm
ø630 mm
Max. swing diameter over carriage
ø260mm
ø290mm (with Y axis: 200mm)
ø330 mm
Max. workpiece Length
300mm
500mm (with Y axis: 530mm, with Counter Spindle: 450mm)
800 mm (1100 mm/ 1500mm)
Max. work piece diameter
ø380mm
ø380mm
ø520mm
Spindle
Max speed
4000rpm
4000rpm
3500 rpm
Spindle nose
A2-6
A2-6
A2-8
Spindle bore diameter
ø66mm
ø63mm
ø91mm
Through spindle bore diameter
ø52mm
ø52mm
ø75mm
Spindle power
11/15kW
11/15kW
15 KW
Min. C-axis indexing
--
0.001°
--
Counter Spindle
Chuck size
--
6 inches
--
Rate speed / Max speed
--
1750/6000rpm
--
Spindle nose
--
A2-5
--
Spindle bore diameter
--
ø56mm
--
Through spindle bore diameter
--
ø45mm
--
Spindle power
--
11kW
--
Travels
--
530m
--
Rapid traverse
--
30m/min
--
Tool Holder
Type
Servo turret
Power Turret
Servo Turret
Tools
8/12
12
12
Tool shank size
25x25/20x20mm
25x25mm
25x25mm
Tool shank diameter
ø40/ø32mm
ø40mm
ø40mm
Min. Tool to Tool
--
0.2 seconds
0.2s
Max. Tool to Tool
--
0.5s
0.5s
Max. Live Tooling Speed
--
5000rpm
5000rpm
Live Tooling Model
--
BMT55
BMT55
Travels
X Rapid traverse
30m/min
30m/min
30m/min
Z Rapid traverse
30m/min
30m/min
30m/min
Y Rapid traverse
--
15m/min
--
X Travels
200mm
190+10mm
260+10 mm
Z Travels
360mm
550mm (with Y axis: 490+-50mm)
850mm (1150 mm/ 1550 mm)
Tail Stock
Travels from Tail Stock to Chunk
--
465mm (with Y axis: 500mm)
--
Tail Stock Rapid Traverse
--
30m/min
10m/min
Sleeve taper
--
MT4
MT5
Accuracy
Finish turning cylindrical accuracy
IT6
IT6
IT6
Finish turning parts surface
Ra0.4-1.6
Ra0.4-1.6
Ra0.4-1.6
Finished turning parts roundness
≤0.003mm
≤0.003mm
≤0.003mm
Position accuracy(Ｘ)
0.005mm
0.005mm
0.005mm
Position accuracy(Ｚ)
0.008mm
0.008mm
0.008mm
Repeat accuracy (Ｘ)
0.002mm
0.002mm
0.002mm
Repeat accuracy(Ｚ)
0.004mm
0.004mm
0.004mm
Dimensions and Weight
Dimensions(LxWxH)
1775x1600x1690mm
2500x1720x1740mm (with Y axis: 2680x1750x1850mm, with Counter Spindle: 2680x1750x1850mm)
2500x1720x1740 mm
N.W.
3050kg
4000kg
6200 kg/ 6800 kg/ 7220 kg
