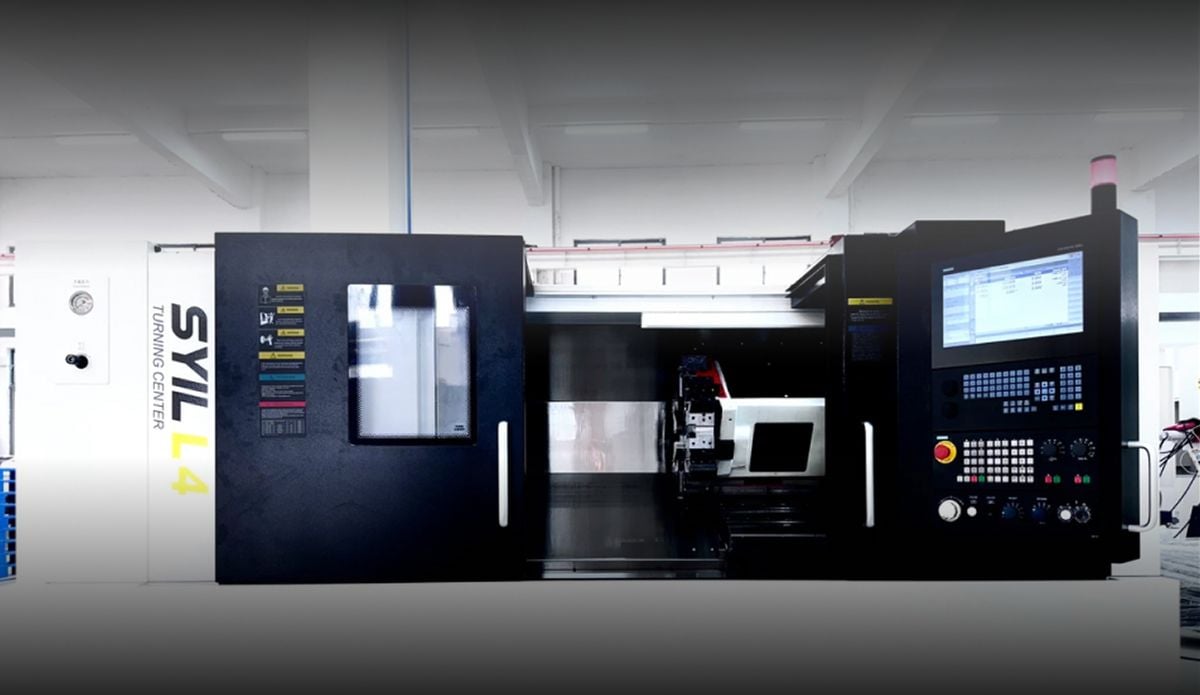

SYIL L4 CNC tokarilica

Tokarilica za velike dijelove

Servo kupola s 12 stanica (uključujući 4 držača alata za bušenje, 2 držača alata za čeone površine, 8 pari alata za pritisak) Šuplja hidraulična stezna glava s tri čeljusti od 10 inča Vreteno A2-8 Hidraulični kontravršilac

Zatražite ponudu

Processing Capacity

Chuck size:

10 inches

Max. swing diameter over bed:

ø630 mm

Max. swing diameter over carriage

ø330 mm

Max. workpiece length:

800 mm (1100 mm/ 1500mm)

Max. workpiece diameter

ø520 mm

Spindle

Max. speed:

3500 rpm

Spindle nose:

A2-8

Spindle bore diameter:

ø91 mm

Through spindle bore diameter:

ø75 mm

Spindle power:

15 kW

Tool Holder

Type:

Servo Turret

Tools:

12

Min. Tool to Tool:

0.2 s

Max. Tool to Tool:

0.5 s

Max tool shank size:

25x25 mm

Max tool shank diameter:

ø40 mm

Max. Live Tooling Speed:

5000 rpm

Live Tooling Model:

BMT55

Travels

X Rapid traverse:

30 m/min

Z Rapid traverse:

30 m/min

X Travels:

260+10 mm

Z Travels:

850mm (1150 mm/ 1550 mm)

Tail Stock

Tail Stock Rapid Traverse:

10 m/min

Sleeve taper:

MT5

Accuracy

Finish turning cylindrical accuracy:

IT6

Finish turning parts surface:

Ra0.4-1.6

Finished turning parts roundness:

≤0.003 mm

Position accuracy (Ｘ):

0.005 mm

Position accuracy (Z):

0.008 mm

Repeat accuracy (Ｘ):

0.002 mm

Repeat accuracy (Ｚ):

0.004 mm

Dimensions and Weight

Dimensions(LxWxH)

2500x1720x1740 mm

Weight

6200 kg/ 6800 kg/ 7220 kg

Specifikacije paketa tokarskog centra SYIL L4

Idealno za okruženja s velikim obimom i velikom proizvodnjom

Zatražite ponudu

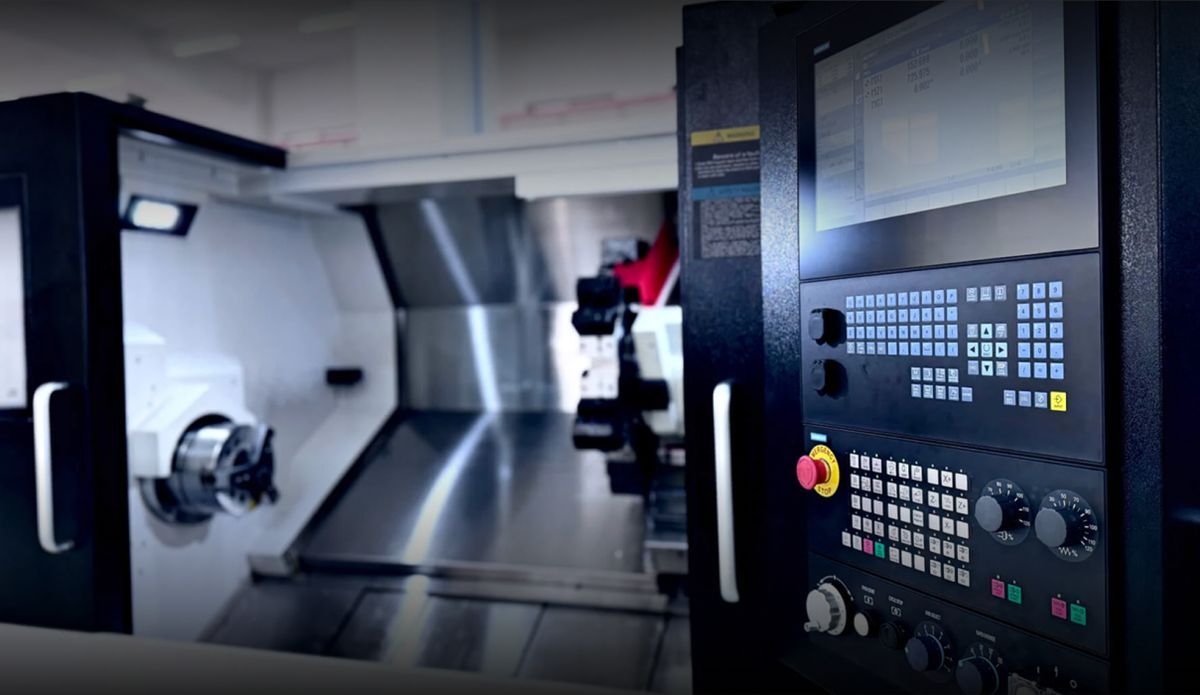

SYIL L Siemens

SYIL L4 je opremljen s Siemens SINUMERIK 828D. upravljački sustav kao standard. Svojim jedinstvenim CNC performansama, upravljački sustav SINUMERIK 828D postavlja standarde produktivnosti kada je u pitanju glodanje na SYIL strojevima. S novim SINAMICS pogonima i SIMOTICS motorima za upravljanje gibanjem, SINUMERIK 828D je sada još produktivniji. Robusna hardverska arhitektura i inteligentni algoritmi upravljanja, zajedno s visokokvalitetnom tehnologijom pogona i motora, osiguravaju maksimalnu dinamiku i preciznost tijekom obrade.

Zatražite ponudu

Poboljšajte svoju preciznu obradu s SYIL CNC tokarilicama

Visokoučinkoviti tokarski centri SYIL L serije dizajnirani su za pružanje neusporedive fleksibilnosti podešavanja, ekstremne krutosti i iznimne toplinske stabilnosti. Ovi strojevi predvode industriju u omjeru performansi i cijene, nudeći nenadmašnu vrijednost u svojoj klasi.

Visokoproduktivni tokarilica

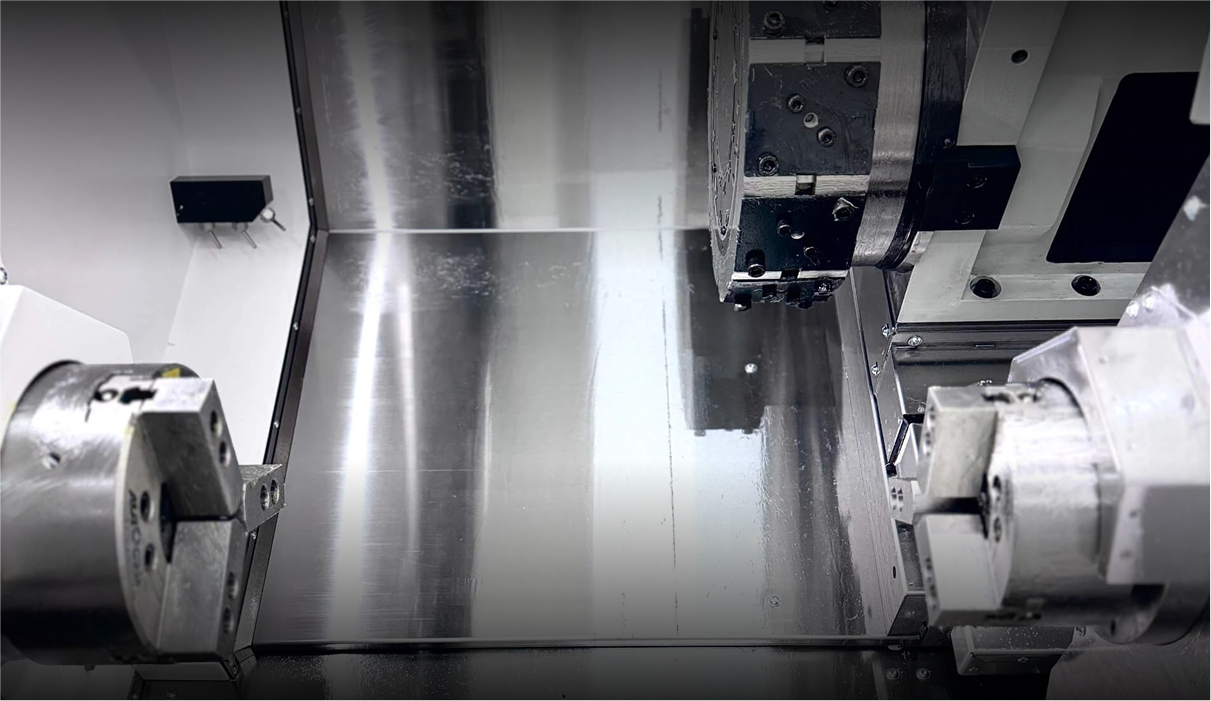

SYIL L4 tokarilica: visokoučinkovita CNC obrada velikih dijelova.



Schneeberger

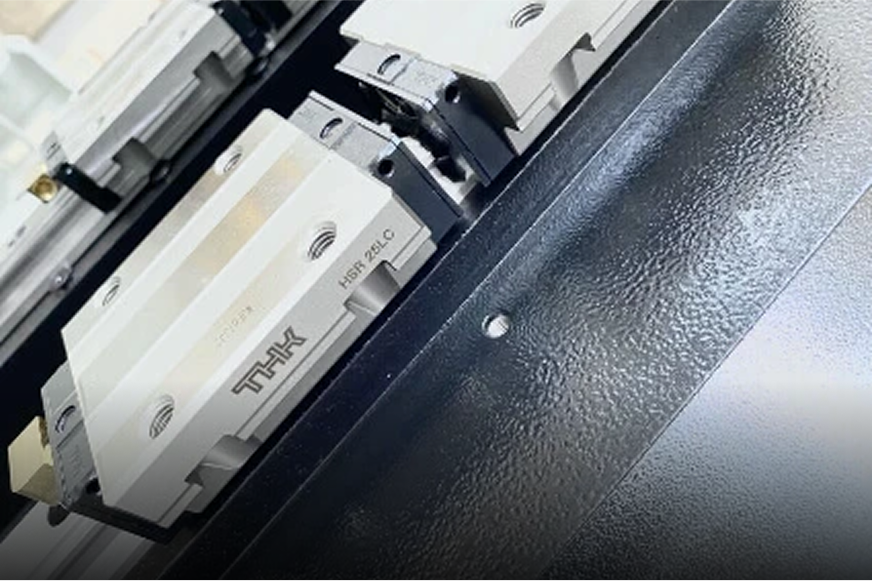

Opcionalni SCHNEEBERGER visokoprecizni mineralni lijevanje

THK

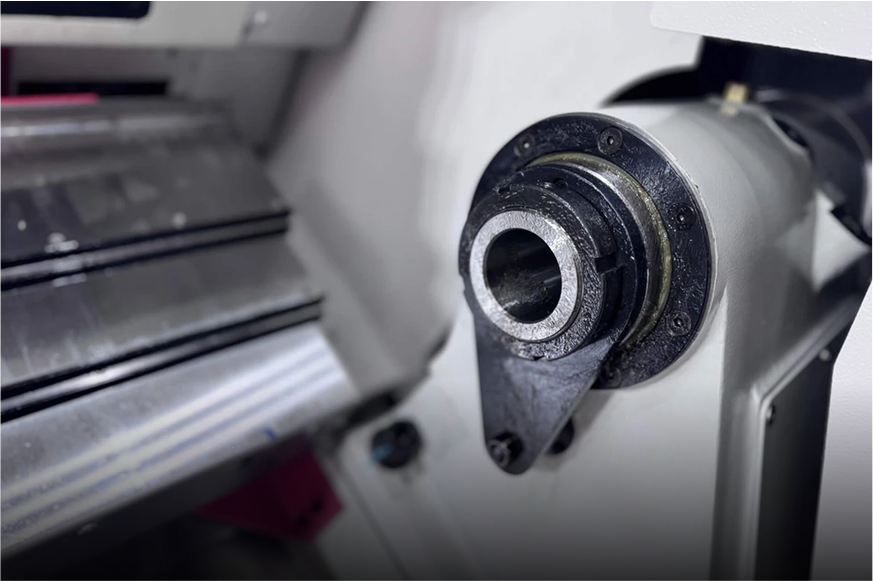

Visokoprecizni kuglični vijci i linearne vodilice

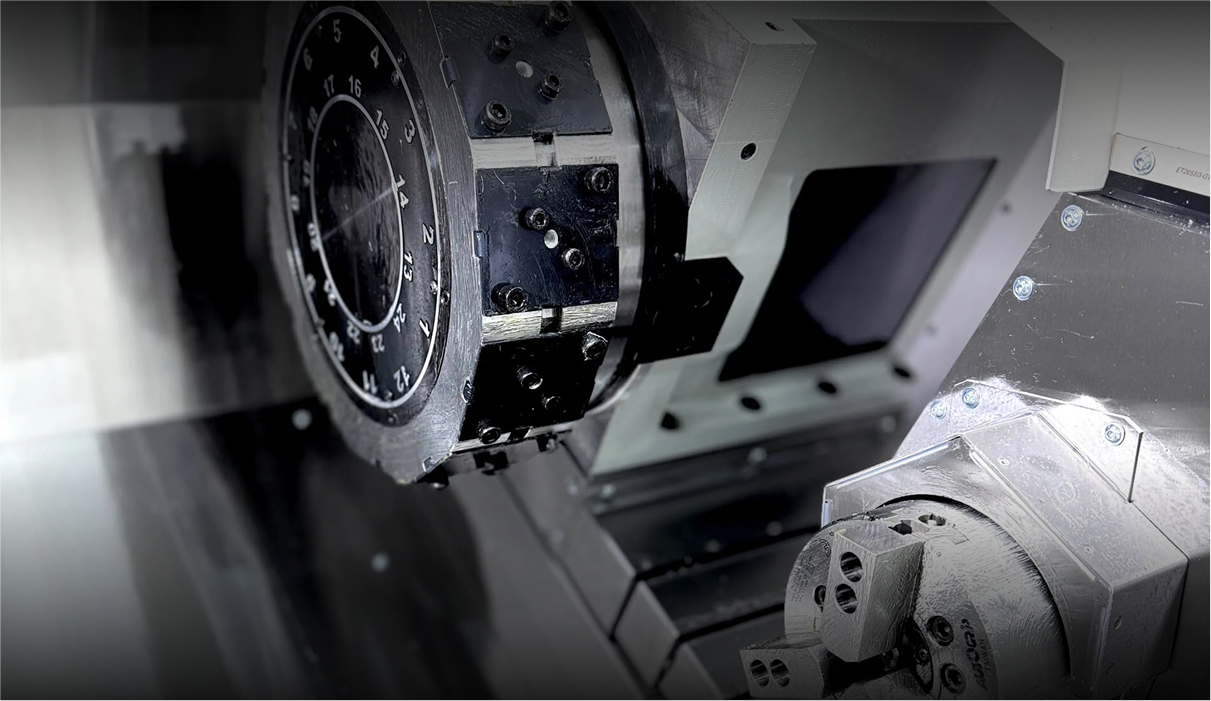

Opcionalna SAUTER servo kupola

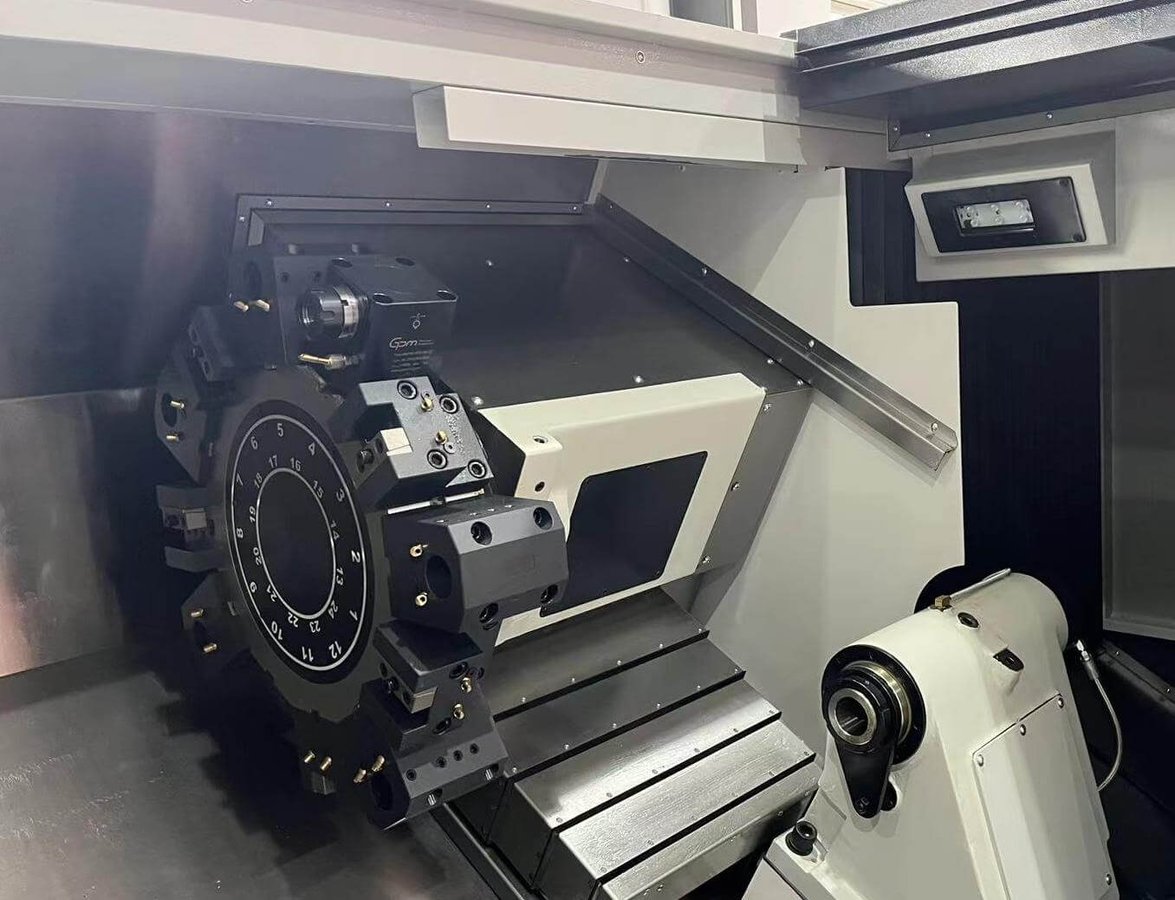

Brzina vretena električnog alata od 5000 okretaja u minuti

Brza servo jedinica vretena

Maksimalna brzina vretena 4500 o / min

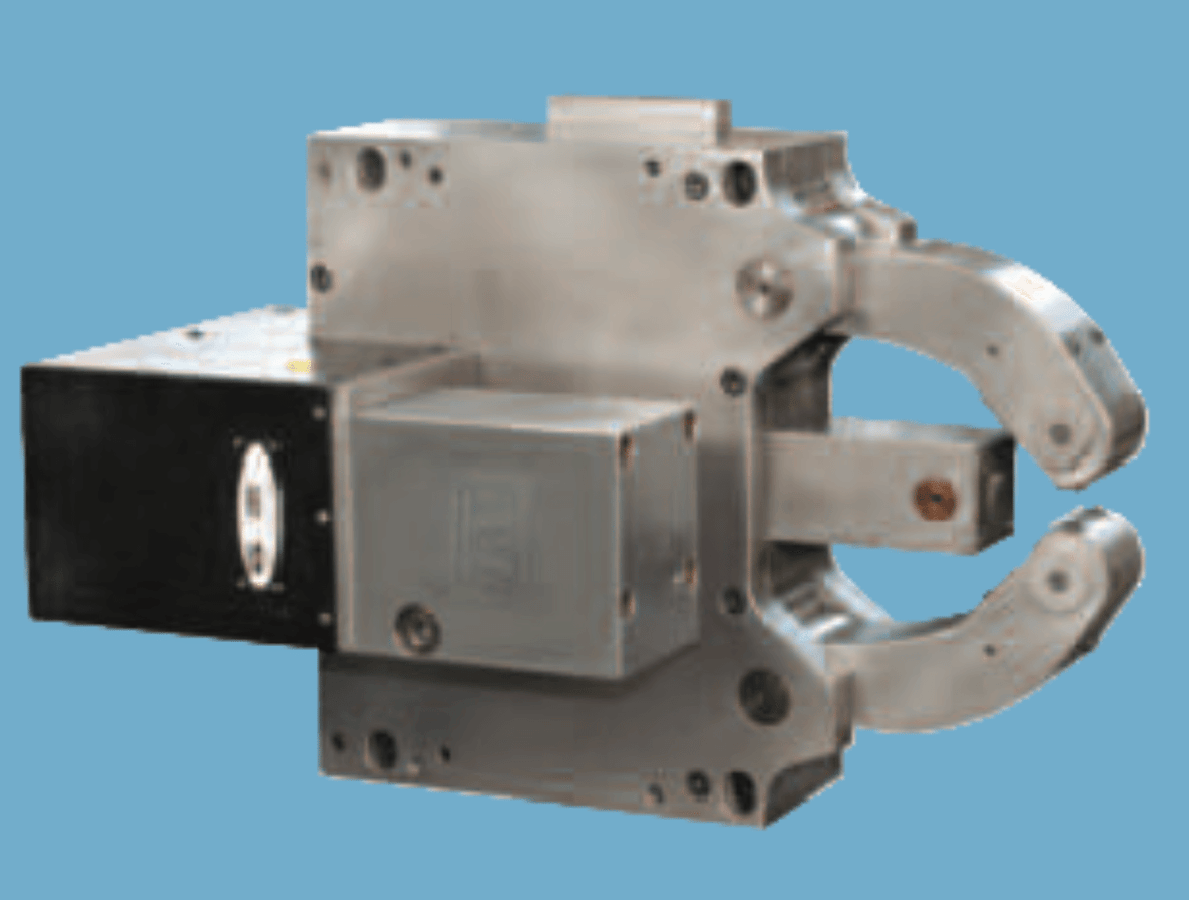

Opcije za SYIL L4

Otkrijte svestranu SYIL L4 mini glodalicu, savršenu za hobiste i profesionalce. Kompaktan dizajn, visoka preciznost i pristupačna cijena.

Preuzmi cijene

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Technical Specifications

logo
L2
L3
L4
Processing Capacity
Chuck size
8 inch
8 inches
10 inches
Max. swing diameter over bed
ø510 mm
ø550 mm
ø630 mm
Max. swing diameter over carriage
ø260mm
ø290mm (with Y axis: 200mm)
ø330 mm
Max. workpiece Length
300mm
500mm (with Y axis: 530mm, with Counter Spindle: 450mm)
800 mm (1100 mm/ 1500mm)
Max. work piece diameter
ø380mm
ø380mm
ø520mm
Spindle
Max speed
4000rpm
4000rpm
3500 rpm
Spindle nose
A2-6
A2-6
A2-8
Spindle bore diameter
ø66mm
ø63mm
ø91mm
Through spindle bore diameter
ø52mm
ø52mm
ø75mm
Spindle power
11/15kW
11/15kW
15 KW
Min. C-axis indexing
--
0.001°
--
Counter Spindle
Chuck size
--
6 inches
--
Rate speed / Max speed
--
1750/6000rpm
--
Spindle nose
--
A2-5
--
Spindle bore diameter
--
ø56mm
--
Through spindle bore diameter
--
ø45mm
--
Spindle power
--
11kW
--
Travels
--
530m
--
Rapid traverse
--
30m/min
--
Tool Holder
Type
Servo turret
Power Turret
Servo Turret
Tools
8/12
12
12
Tool shank size
25x25/20x20mm
25x25mm
25x25mm
Tool shank diameter
ø40/ø32mm
ø40mm
ø40mm
Min. Tool to Tool
--
0.2 seconds
0.2s
Max. Tool to Tool
--
0.5s
0.5s
Max. Live Tooling Speed
--
5000rpm
5000rpm
Live Tooling Model
--
BMT55
BMT55
Travels
X Rapid traverse
30m/min
30m/min
30m/min
Z Rapid traverse
30m/min
30m/min
30m/min
Y Rapid traverse
--
15m/min
--
X Travels
200mm
190+10mm
260+10 mm
Z Travels
360mm
550mm (with Y axis: 490+-50mm)
850mm (1150 mm/ 1550 mm)
Tail Stock
Travels from Tail Stock to Chunk
--
465mm (with Y axis: 500mm)
--
Tail Stock Rapid Traverse
--
30m/min
10m/min
Sleeve taper
--
MT4
MT5
Accuracy
Finish turning cylindrical accuracy
IT6
IT6
IT6
Finish turning parts surface
Ra0.4-1.6
Ra0.4-1.6
Ra0.4-1.6
Finished turning parts roundness
≤0.003mm
≤0.003mm
≤0.003mm
Position accuracy(Ｘ)
0.005mm
0.005mm
0.005mm
Position accuracy(Ｚ)
0.008mm
0.008mm
0.008mm
Repeat accuracy (Ｘ)
0.002mm
0.002mm
0.002mm
Repeat accuracy(Ｚ)
0.004mm
0.004mm
0.004mm
Dimensions and Weight
Dimensions(LxWxH)
1775x1600x1690mm
2500x1720x1740mm (with Y axis: 2680x1750x1850mm, with Counter Spindle: 2680x1750x1850mm)
2500x1720x1740 mm
N.W.
3050kg
4000kg
6200 kg/ 6800 kg/ 7220 kg
