Mali CNC stroj SYIL X7

Mala veličina, velike prednosti

400x300x380mm os putuje 12-Unit brzi izmjenjivač servo alata (ATC) 12.000 O/MIN BT30 vreteno SCHNEEBERGER mineral Casting

Zatraži ponudu

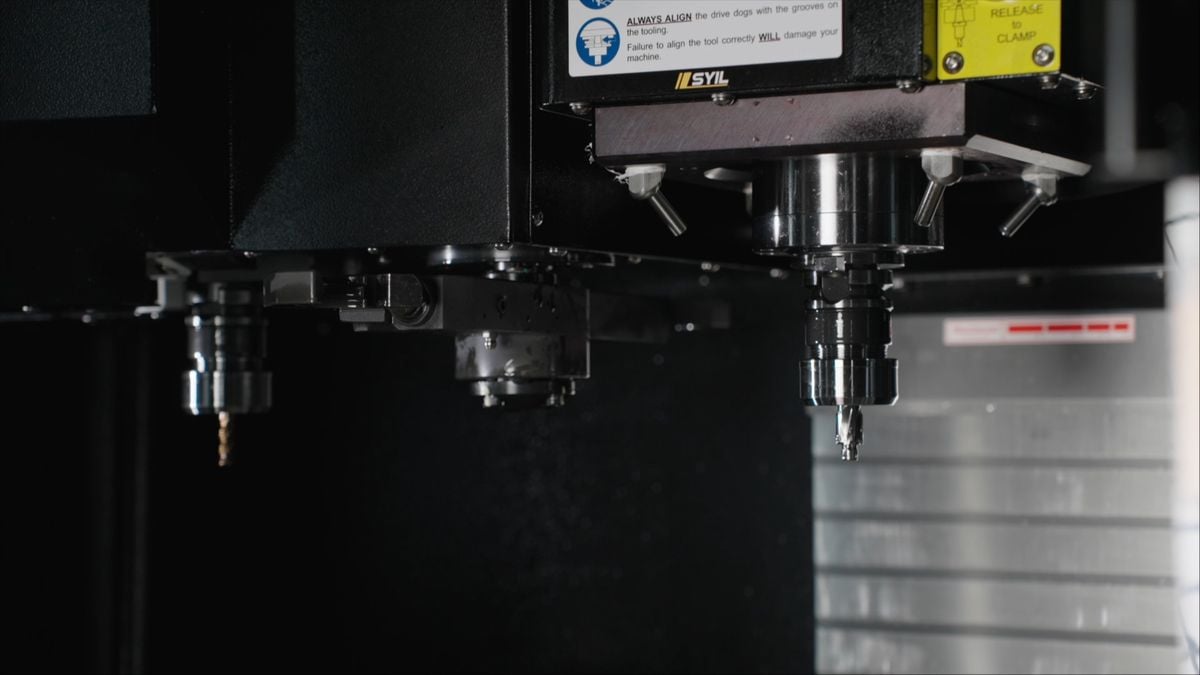

Table

Table size

27.56"×11.81" (700×300 mm)

T-slots (number×size×distance)

0.12×0.55×3.94" (3×14×100 mm)

Max. table load

330 lb (150 kg)

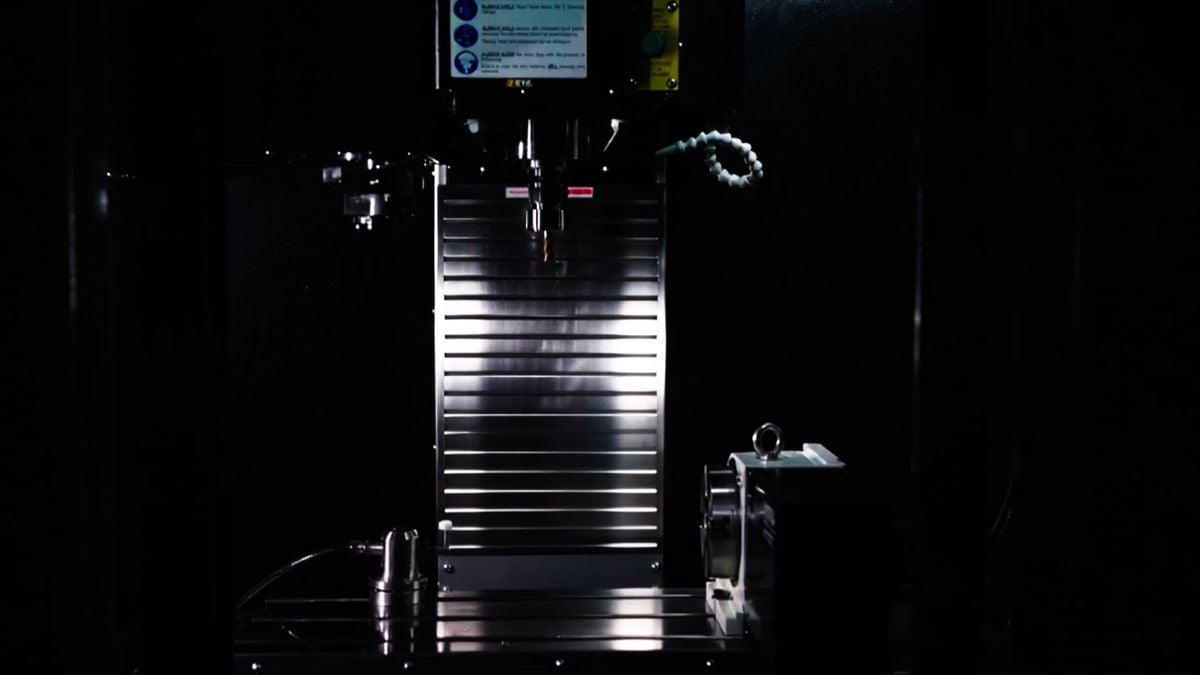

Travel

X travel

15.7″ (400 mm)

Y travel

11.8" (300 mm)

Z travel

14.9" (380 mm)

Distance between spindle end and tabletop

5.9"- 20.8" (150-530 mm)

Distance between spindle and column surface

14" (358 mm)

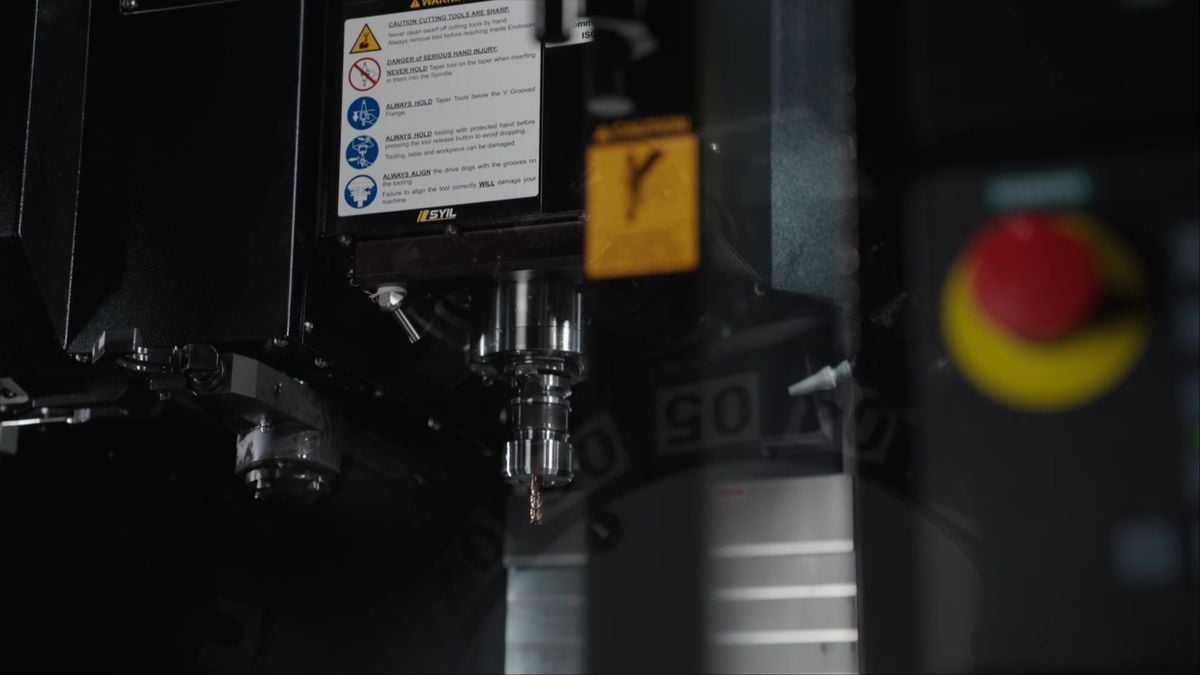

Spindle

Spindle Nose

BT30

Spindle Speeds

12,000 rpm

Mechanism of Transmission

Belt

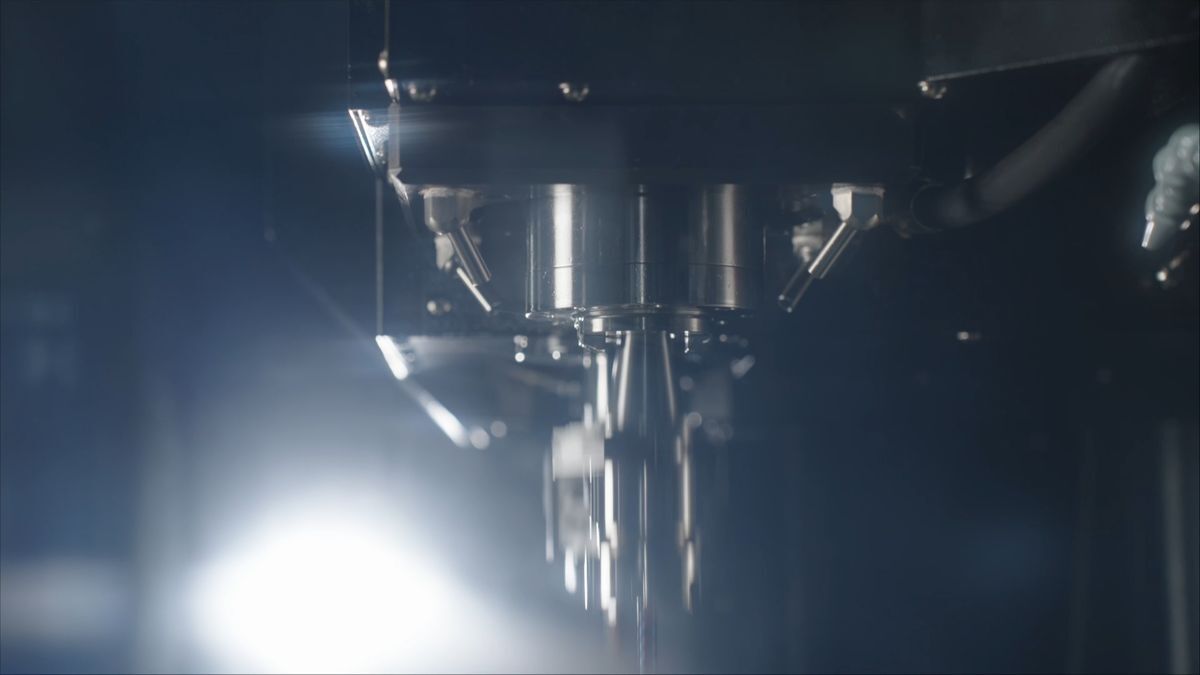

Feed

Cutting Feed

10,000 mm/min

Rapid Traverse

30,000 mm/min

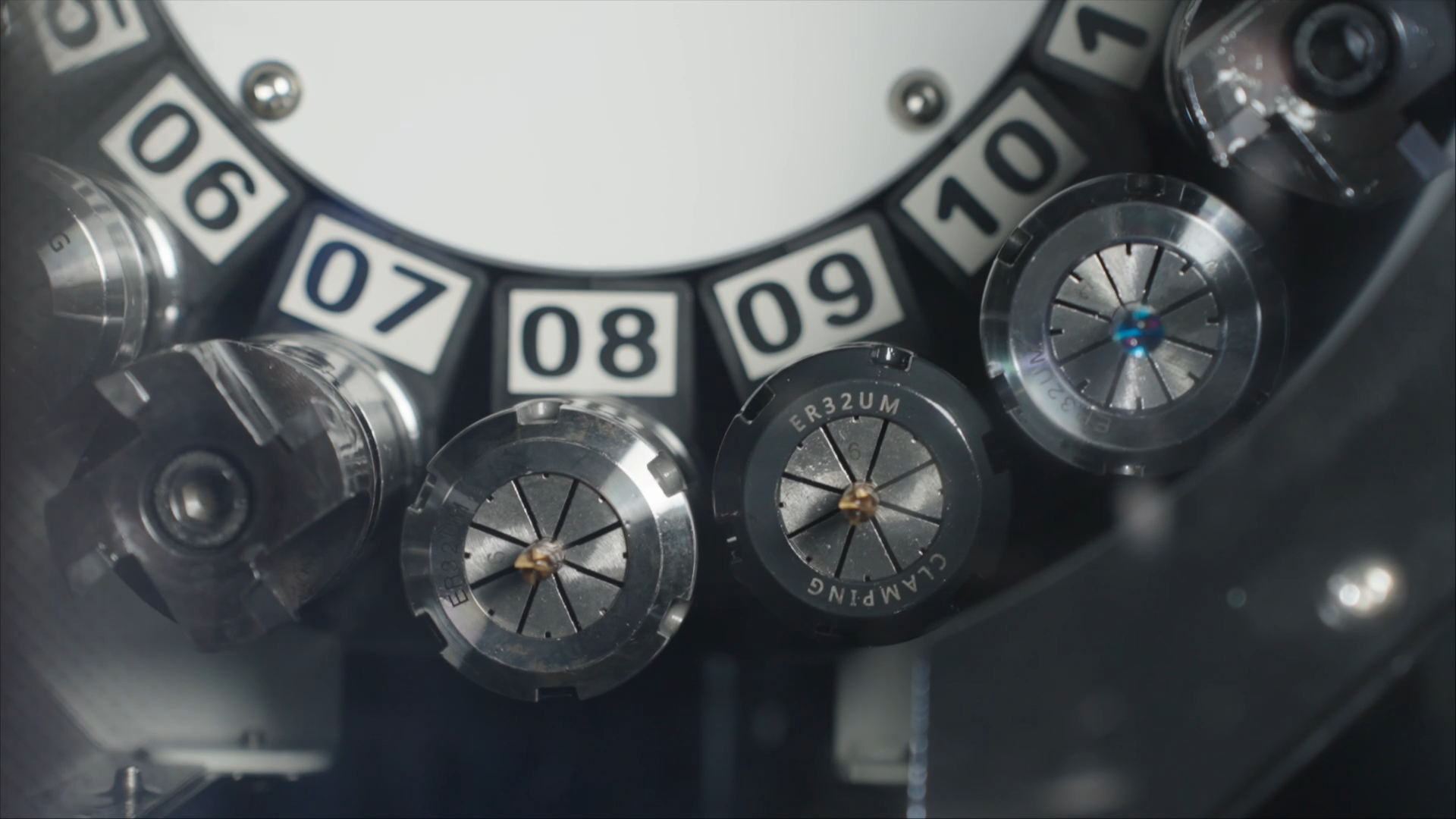

Auto Tool Changer

Tool Type

Umbrella

Tool Storage Capacity

12 pcs

Max. Tool Diameter

2.4" (63 mm)

Max. Tool Length

7.8" (200 mm)

Max. Tool Weight:

6.6 lb (3 kg)

Tool to Tool

1.5 s

Power - Siemens 828

Spindle motor output (Rate/Max)

7.5/11 kW

Drive motors (X,Y,Z)

1.1/2.2/2.2 kW

Power source

AC380V/ 3-Phase

Power

14 kVA

Power - Syntec

Spindle motor output (Rate/Max)

8.2/12 kW

Drive motors (X,Y,Z)

1.1/1.7/2.4 kW

Power source

AC380V/ 3-Phase

Power

14 kVA

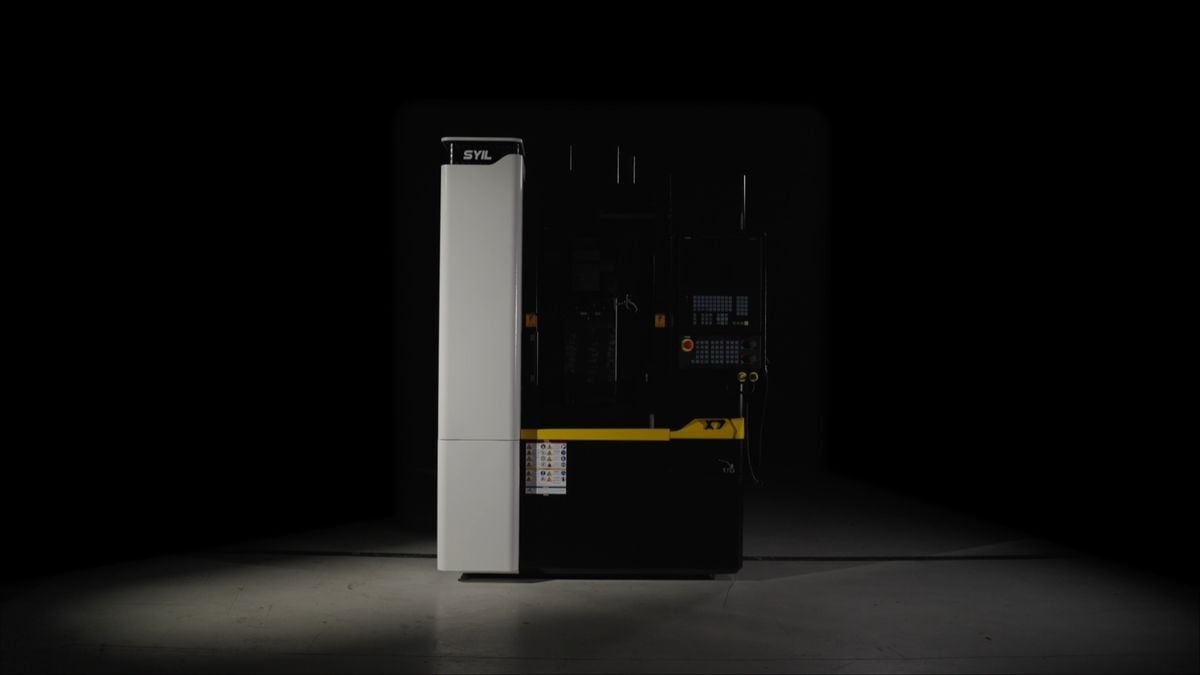

Machine Size and Weight

Floor size (L×W×H)

70.87 × 62.99 × 88.58" (1800×1600×2250 mm)

Weight

2200 kg

Specifikacije paketa SYIL X7

Poboljšajte razinu produktivnosti pomoću ovog malog CNC glodalice

Zatraži ponudu

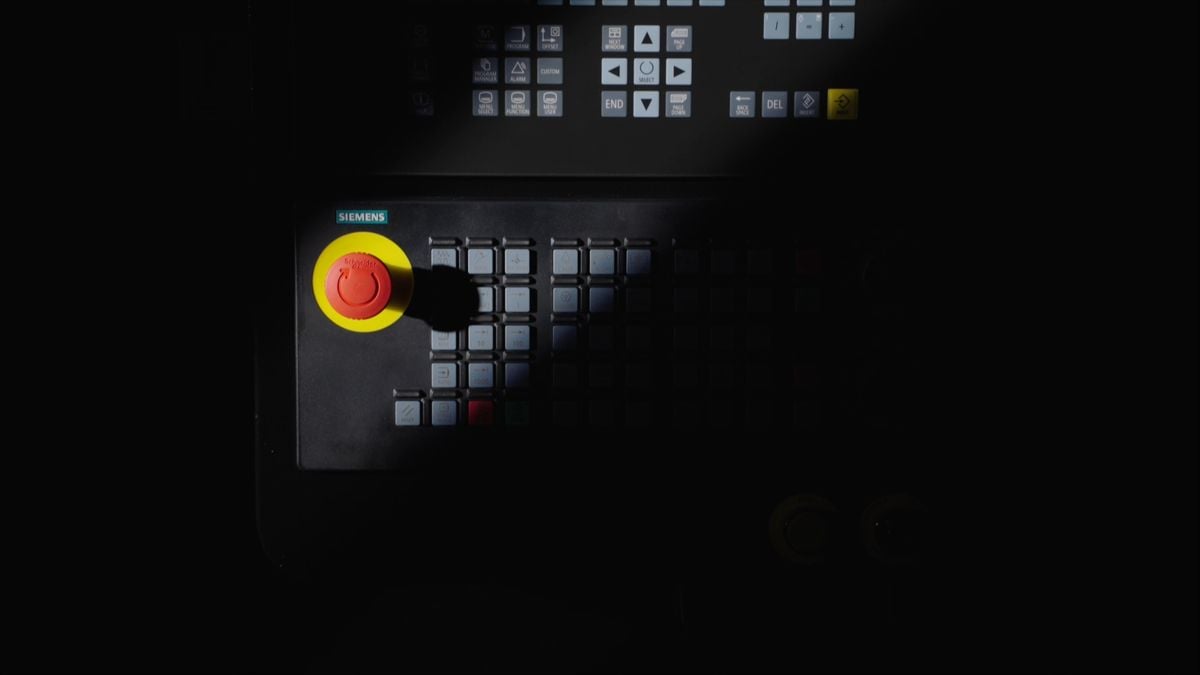

SYIL x Siemens

SYIL X7 je serijsko opremljen s Siemensovim krmilnim sistemom SINUMERIK 828D. Krmiljenje SINUMERIK 828D s svojo edinstveno zmogljivostjo CNC postavlja standarde produktivnosti pri rezkanju na strojih SYIL. Z novimi pogoni SINAMICS in motorji za krmiljenje gibanja SIMOTICS je SINUMERIK 828D zdaj še bolj produktiven. Robustna arhitektura strojne opreme in inteligentni krmilni algoritmi skupaj z visokokakovostno tehnologijo pogonov in motorjev zagotavljajo največjo dinamiko in natančnost med strojno obdelavo.

Zatraži ponudu

SYIL X7

Napajaju ga najbolje ugrađene komponente

CNC glodalica najbolje vrijednosti u svojoj klasi

Mali SYIL X7 CNC stroj nudi mali otisak s neviđenom brzinom. Pruža potpune CNC mogućnosti u kompaktnom prostoru, osiguravajući visoku kvalitetu obrade. Štoviše, ovaj učinkovito kompetentan CNC glodalica dolazi po pristupačnoj cijeni. Zbog svoje izvrsne kompetencije i visoke stope pristupačnosti, pravi je izbor za sve CNC reznice uz niske jedinične troškove.



Schneeberger

Okvir stroja za lijevanje minerala

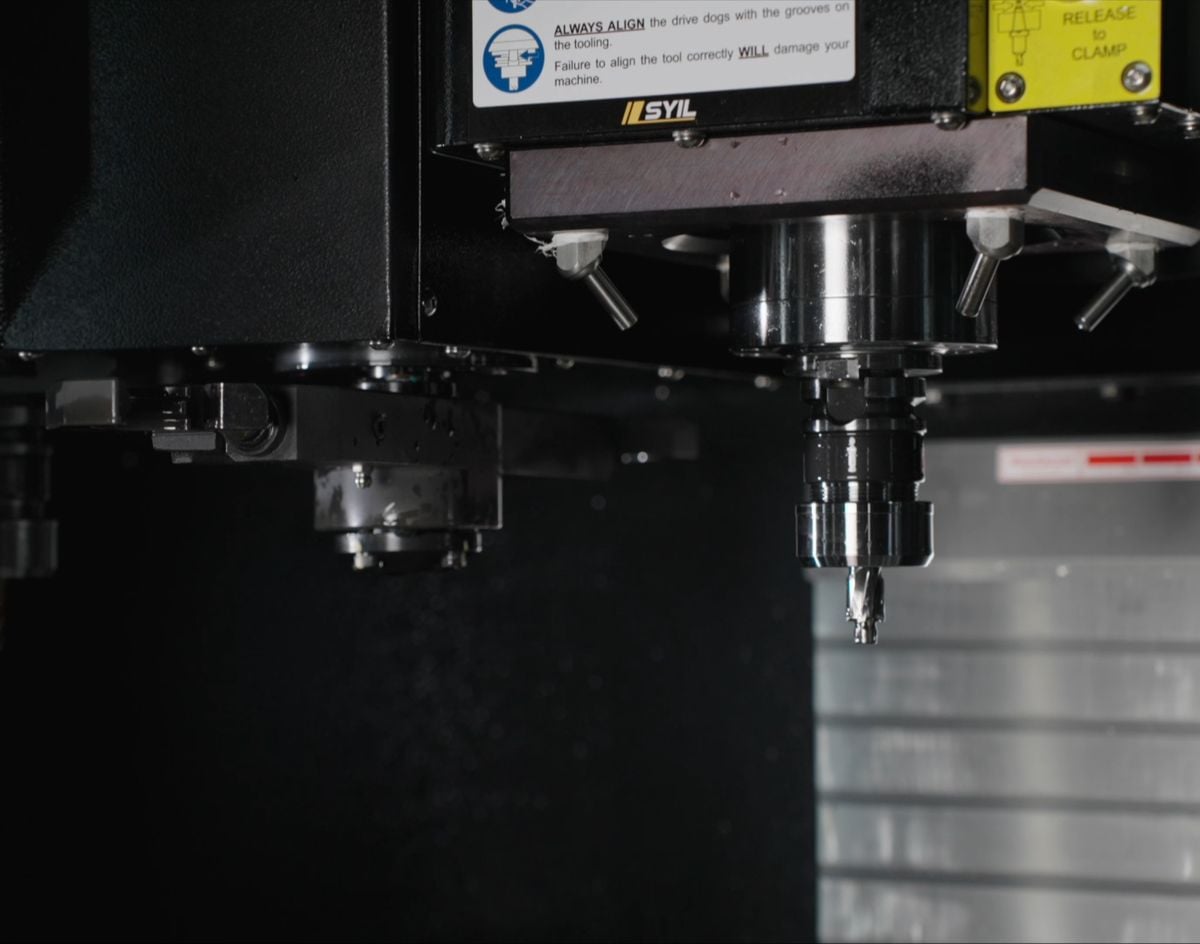

THK

Visokoprecizni kuglasti vijci i linearne vodilice

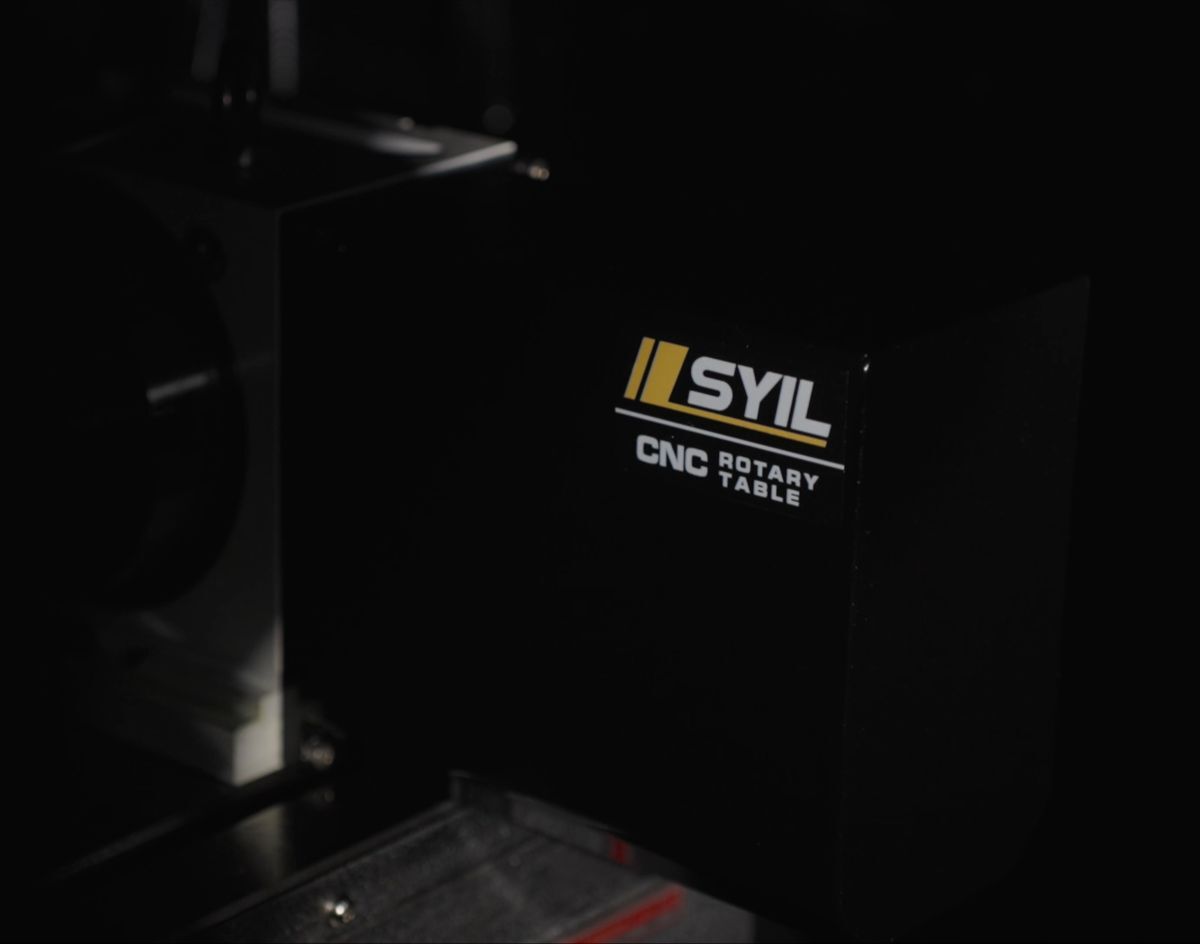

Četvrta os

Dostupna neobavezna četvrta os

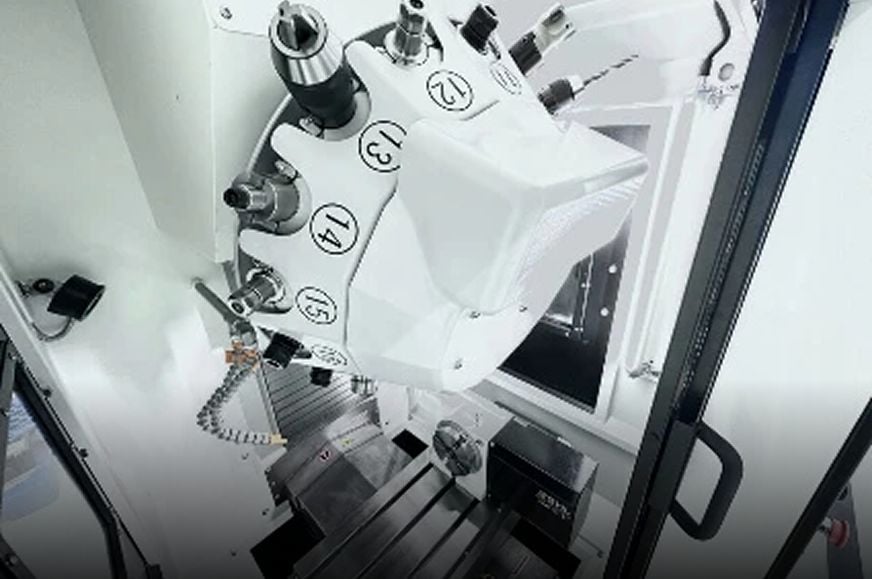

Brza izmjenjivač servo alata

16 Jedinica BT30

Opcije za SYIL X7

Otkrijte svestranu mini glodalicu SYIL X7, savršenu za hobiste i profesionalce. Kompaktan dizajn, visoka preciznost i pristupačna cijena.

Preuzmi cijene

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Heading name here

Lorem Ipsum is simply dummy text of the printing.

Technical Specifications

logo
X5
X7
X9
X11
Table
Table size (mm)
560×260
700×300
860×500
1050×550
Table load (kg)
150
150
500
600
Table surface (number×size×distance in mm)
T-slots 3×14×80
T-slots 3×14×100
T-slots 18×5×100
T-slots 18×5×90
Travel distances
X-axis (mm)
300
400
760
1000
Y-axis (mm)
260
300
500
500
Z-axis (mm)
300
380
500
500
Distance from spindle nose to table top
150-450
150-530
100-600
110-610
Distance between spindle and column surface
330
358
530
650
Spindle
Spindle taper
BT30
BT30
BT40
BT40
Power-drive
Direct
Belt
Belt
Belt
Max. spindle speed (rpm)
20,000
12,000
10,000
10,000
Feed
Rapid traverse (mm / min)
30,000
30,000
30,000
30,000
Cutting feed (mm / min)
10,000
10,000
10,000
10,000
Automatic tool changer
Type
Wheel
Arm
Arm
Arm
Tool holder
BT30
BT30
BT40
BT40
Tool storage capacity
16
16
24
24
Max. tool diameter (mm)
63
63
125
125
Max. tool length (mm)
200
200
240
300
Max. tool weight (kg)
3
3
7
7
Tool to tool (s)
1
1.5
2
2.5
Other data
Machine weight (kg)
2180
2200
5000
7000
Machine dimensions L x W x H (mm)
Footprint including coolant tank and controller
2020×1000×2360
1800×1600×2250
1850×2245×2800
2600×2150×2500
Min/max air pressure (MPa (psi))
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
Coolant tank capacity (Liters)
80
80
130
240
